APLINK LCX SERIES is a new generation High Resolution Inkjet System, specifically designed and developed to code on porous, secondary cases.
Equipped with 4th generation piezoelectric print head, APLINK LCX SERIES is the perfect solution for any production line up to 50m/min speed. The system can be configured and installed to print on the top and side of the cases.
With 180 dpi vertical resolution and a horizontal resolution capacity up to 360 dpi, it can print any kind of logo, text, barcode, dates, counters, etc.
APLINK LCX SERIES can print with oil-based inks for porous surfaces, and with UVLED inks for non-porous surfaces.
APLINK LCX SERIES allows an easy integration with an external database, transmitting data obtained from your ERP system directly to the printer.
Thanks to the easy and effective connection, you can create thousands of messages with just a click.
Maximum cost saving - smoothest operation with the lowest maintenance.
5.7" full color touch-screen display and a user-friendly interface - giving real-time printer status information.

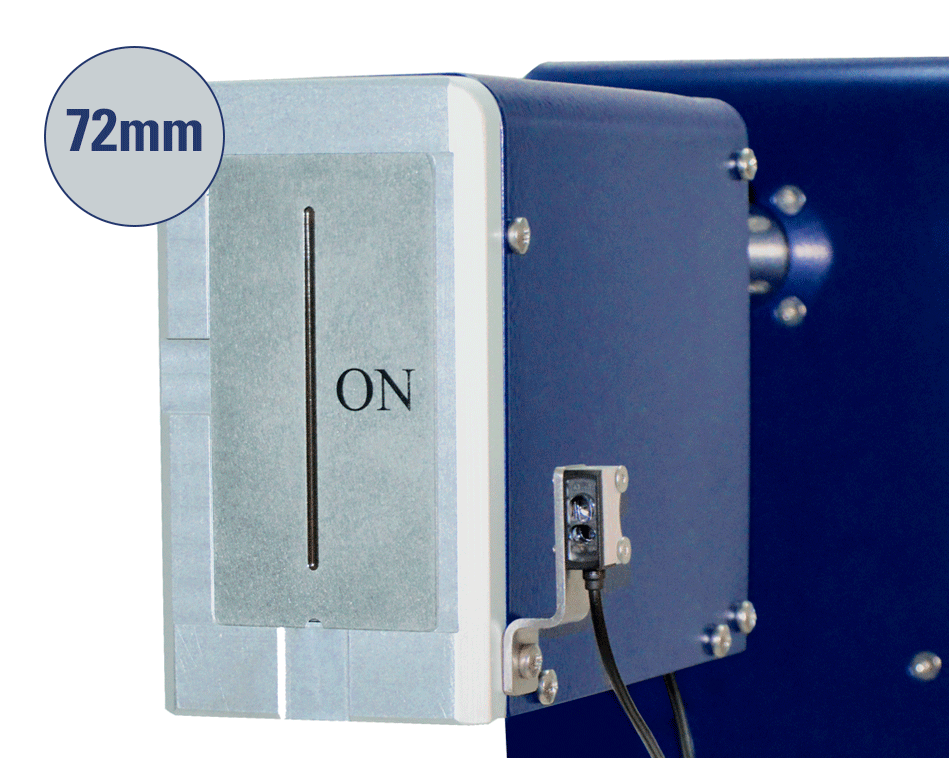

Printing height 17 mm (0.67”) up to 72 mm (2.83”).
PRINTING ON ANY SURFACE: UVLED CURING
At United Barcode Systems we manufacture the only complete UVLED curing solution: Lamp + Printer + Ink.
Exclusive integrated security system UVLED On Board Security System® (OBSS): prevent the occasional lightening inline.
PWM, amplitude modulation: Automatic lightening potency regulation according to speed variation. Protect surface from damage. (available only for TJX UV LED).
